Quick Start Guide
What’s in the Box
1 Analog Telephone Adapter
1 USB cable
1 Quick Start Guide
Ports and LED Lights
Your Keenetic Linear analog telephone adapter is powered and controlled by your Keenetic router via a USB port and connects two analog phones to a VoIP service provider.

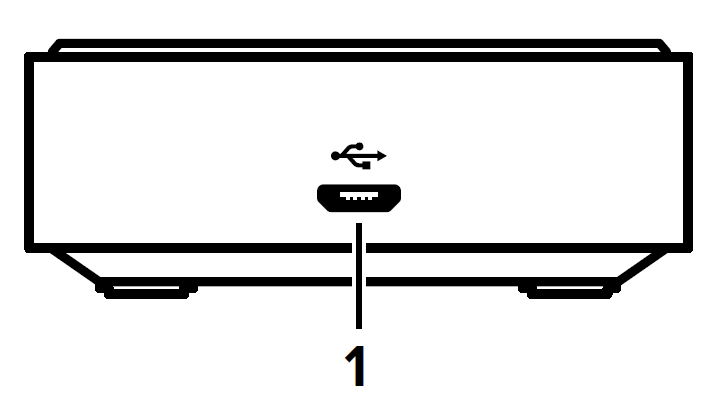

 | 1. USB Port J Use the supplied USB cable to connect to a compatible Keenetic device with a USB port. |

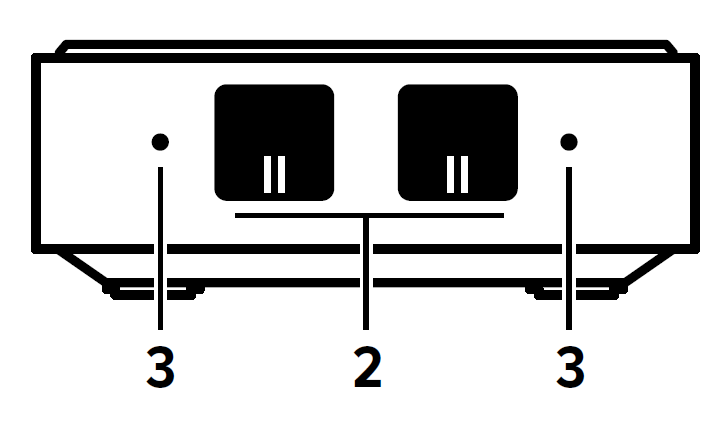

 | 2. Phone Ports K L Connect to an analog phone, using an RJ-11 phone cable. 3. Phone LEDs
|
Installing Your Keenetic Linear
Make sure your Keenetic router is active and has an Internet connection.
Сonnect a mobile device / computer to your Keenetic router network.
Launch a web browser, go to my.keenetic.net and log in to the router. Then under the General system settings section, click Component options and choose to install the Keenetic Phone Station component. Click Install the update and wait for the system to restart.
Connect the Keenetic Linear to your Keenetic router using the supplied USB cable. Check that the corresponding M LED is illuminated on your router.
In your web browser, jump to the Telephony settings section, and follow the instructions to set up your Telephone Adapter.
For technical support or other information, please visit https://support.keenetic.com/.
Safety Instructions
Use with EN62368-1/EN60950 compliant router only.
Device is ONLY for indoor use — NEVER use it outside.
Never use device in an enclosed space.
Device contains no user-serviceable parts — DO NOT OPEN.
Keep device away from water, excessive humidity or heat, and direct sunlight.
Device Warranty
Certification Information
Keenetic Limited hereby declares that this device is in compliance with all relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. Details of the original EU declaration may be found at keenetic.com within details on specific model pages.
Disposal
In accordance with European directives, your Keenetic device, including the cables may not be disposed of with general household waste. Consult your local authority or your supplier for information about disposal.
Notice
When you use your Keenetic device (including when you connect your Keenetic device the first time), Keenetic Limited will process certain personal data about you, e.g., service tag, serial number, model name, software version, and IP address of your Keenetic device. For more information, please go to keenetic.com/legal.
If you are in the European Union / European Economic Area, Keenetic GmbH will process certain personal data about you, e.g., service tag, serial number, model name, software version, and IP address of your Keenetic device. Please read our Device Privacy Notice for the European Union / European Economic Area at keenetic.com/legal.
